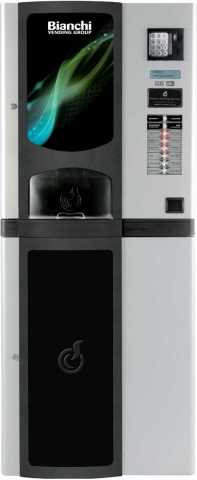

BVM 931 E5S Espresso
Style: Table Top
Model: BV931IN01NA
Version: E5S Espresso
A FULL AUTOMATIC TABLE TOP WITH HIGH PERFORMANCES.BVM 931,
automatic 300 cups vending machine for hot drinks with up to 28 programmable selections and direct selection panel with 16 push buttons that can be configured both as selections or pre-selections.
- ▸ Direct selections panel with 16 push buttons that can be con figured both as selections or pre-selections.
- ▸ Alphanumeric selection keypad for function of spiral vending machine in master /slave included.
- ▸ Customizable sugar dosage.
- ▸ End selection acoustic signal.
- ▸ 32 digit alphanumeric display.
- ▸ Slow falling product dispensing door.
- ▸ Design modern with upper lexan bac klighted that offers excellent branding opportunities.
- ▸ In compliance with standard of access for disabled people.
- ▸ Door look with programmable code.
- ▸ Mixers and boiler assembly are extractable to make maintenance operations easier.
- ▸ Standard serpentine kit for tea on all versions.
- ▸ Cup dispenser adjustable to various diameters (from 70 to 74 mm) and dispenser for 90 or 105 mm stirrers.
- ▸ Liquid waste tray: 4 liters with electronic safety block.
- ▸ Coffee ground waste tray: 300 pucks.
- ▸ Switching power supply that guarantees total stability of the instant product dose and complete electric safety protections.
- ▸ Standard multi-protocol electronics.
- ▸ Compatible with telementry.
- ▸ Compatible with all payment systems available on the market.
- ▸ Can work in master/slave with only one set of payment system on the hot vending machine together with a refrigerated automatic spiral vending machine for the sale of snacks, cans and bottles, increasing selling opportunities.
| Espresso | Instant | |
|---|---|---|
| Coffee beans | 1.86 kg | - |
| Instant coffee | 0.45 kg | 1.00 kg |
| Barley | 0.50 kg | 0.50 kg |
| Powder milk | 1.40 kg d* | 1.20 kg |
| Creamer | 2.90 kg d* | 2.70 kg |
| Chocolate | 3.00 kg d* | 2.50 kg |
| Lemon tea | 2.00 kg | 3.30 kg |
| Tea | 1.00 kg | 2.00 kg |
| Soup | 1.25 kg | 3.00 kg |
| Sugar | 1.70 kg | 3.40 kg |
| Spoons | 300 pcs. | 300 pcs. |
| Cups | 300 pcs. | 300 pcs. |
*d = double canister
- ▸ Equipped cabinet.
- ▸ Back extension kit, covered compartment with key where you can place a tank and a water filter, to be used in the model without base cabinet.
- ▸ Cup sensor.
- ▸ Kit chip clock (for energy saving mode and promotional activities).
- ▸ RS232 module.
- ▸ Visual Smart Programmer Speed that allows the upload of the firmware and settings and the download of the settings and audit without a PC.
- ▸ System for the automatic regulation of the coffee bean grinding that guarantees with the variations of the humidity and the temperature, the best quality of the product dispensed at all times.
- ▸ Additional canister and mixer to reach 8 canisters configuration in the instant version.
- ▸ Backlighted lexan with led to reduce energy consumption and with a lifetime greater than neon.
- ▸ Compatible with paper cups and wooden spoons.
- ▸ OPTION: cup sensor to reduce the consumption of plastic cups and to deliver a beverage in a mug.
- ▸ OPTION: energy saving mod to reduce the energy cunsumption when the machine is in stand by.
- ▸ In compliance with ROHS and WEEE.
▸ ---
- Selection panel: Easy
- Cups capacity 70: 300
- Boilers: Single boiler
- Instant product canister:7
- Lexan front panel with LED backlight: Top
▸ Automatic grinding regulation kit:
- Alphanumeric keyboard M/S: Standard
- Height: 800mm
- Width: 680mm
- Depth: 625mm
- Weight: 85kg
