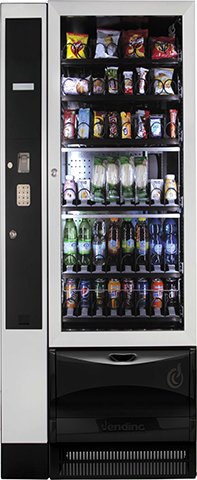

VISTA L Combi

Style: Free Standing


Model: VL8CMA01BVG


Version: VISTA - 183 cm CO 3° - Master Combi


VISTA, THE FLEXIBILITY OF MODULARITY.VISTA L,

automatic spiral refrigerated 3° C vending machine for the sale of snacks, confectionary, sandwiches, yogurts and other fresh perishable foodstuffs, cans and bottles available in slave version.


    VISTA + HOT MACHINE
  • ▸ Selection panel with 12 push buttons
  • ▸ 32 digit graphic LCD display are on the hot master machine.
    • VISTA + MASTER MODULE
    The master module is equipped with:
  • ▸ Stainless steel alphanumeric selection keypad with 12 push buttons.
  • ▸ 32 digit graphic LCD display.
  • ▸ graphical LCD screen 7’’ for images and messages instead of standard 32 digit display.
  • ▸ Armoured and anti-water coin introduction.
  • ▸ Pull product delivery chamber illuminated in picking phase product by the user.
  • ▸ This model, which is born slave, allows maximum flexibility of installation according to the location needs.
  • ▸ Can work in master/slave with up to 2 freestanding machines in the Bianchi range of hot machines, snack & food or cans & bottles with only one set of payment system installed on the master machine or with the master module when it should operate alone not in combination.
  • ▸ With the new master module, Vista L becomes autonomous and works alone, not combined.
  • ▸ Insulated door.
  • ▸ Door with extruded aluminum frame.
  • ▸ Low-emissivity glaze, no requires heating unit.
  • ▸ Product delivery door locking system, when the machine is in stand by.
  • ▸ All machine cabinets are foamed to ensure complete isolation and prevent leakage with unnecessary energy consumption.
  • ▸ Large window illuminated by led.
  • ▸ Door lock with programmable code.
  • ▸ Adjustable tray height.
  • ▸ Specific tray for triangular sandwiches on the food version.
  • ▸ Automatic self diagnostic control system.
  • ▸ Product drop sensor.
  • ▸ Refrigeration unit with a powered compressor easily accessible and removable.
  • ▸ Standard multi-protocol electronics.
  • ▸ Master module that can accommodate all the main payment systems.
    For master module
  • ▸ Visual Smart Programmer Speed that allows the upload of the firmware and settings and the download of the settings and audit without a PC.
  • ▸ Graphical LCD screen 7’’ for images and messages instead of standard 32 digit display.
  • ▸ Cold unit Class A.
  • ▸ In compliance with ROHS and WEEE
  • Type: Master
  • Product capacity: 380 pcs
  • Temperature: 3°C
  • Trays/spirals: 6 / 8
  • LED lighting: Standard
  • Lighted product delivery area: Standard
  • Electro block: Standard
  • Delivery product sensor: Standard
  • Wall anchorage kit: Standard
  • Master Module kit: Standard
  • Master/slave kit with alphanumeric keyboard+cable: Standard
  • Kit alignment for Master Module / Vista 183cm: Standard
  • Height: 1 830mm
  • Width: 968mm
  • Depth: 897mm
  • Weight: 210kg
