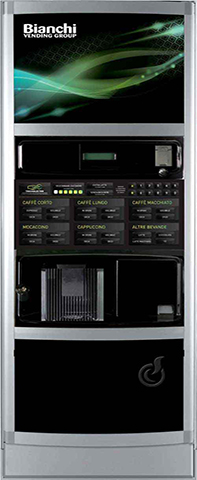

LEI 700 MC - IAV
Style: Free Standing
Model: LEI700ES04BVG
Version: E5S-MC-IAV Espresso Single Boiler
DESIGN AND TECHNOLOGY, A HIGH QUALITY MACHINE TO ANSWER TO ALL KINDS OF NEEDS.LEI 700,
automatic 700 cups vending machine for hot and cold drinks with up to 36 programmable selections that can be configured both as direct selections or pre-selections and 12 alphanumeric selections.
- ▸ Tactile backlighted selection panel (Soft Touch Technology) with up to 36 backlighted programmable selections that can be configured both as direct selections or pre-selections and 12 alphanumeric selections.
- ▸ Customizable sugar dosage.
- ▸ Anti-vandal coin introduction.
- ▸ End selection acoustic signal.
- ▸ 32 digit alphanumeric display.
- ▸ Slow falling product dispensing door.
- ▸ Design modern with lexan backlighted that offers excellent branding opportunities.
- ▸ In compliance with standard of access for disabled people.
- ▸ Cabinet with reinforced structure, door and outer door with structural anodised aluminium profiles and anti-vandal hinges.
- ▸ The door with double opening has been designed to make all the branding operations, selection label replacement and payment system assembly easier for operators.
- ▸ Door look with programmable code.
- ▸ Mixers and boiler assembly are extractable to make maintenance operations easier.
- ▸ Standard serpentine kit for tea on all versions.
- ▸ Cup dispenser adjustable to various diameters (from 70 to 74 mm) and dispenser for 90 or 105 mm stirrers.
- ▸ System for the automatic regulation of the coffee bean grinding that guarantees with the variations of the humidity and the temperature, the best quality of the product dispensed at all times.
- ▸ Switching power supply that guarantees total stability of the instant product dose and complete electric safety protections.
- ▸ Standard multi-protocol electronics.
- ▸ Compatible with all payment systems available on the market.
- ▸ Can work in master/slave with only one set of payment system on the hot vending machine together with a refrigerated automatic spiral vending machine for the sale of snacks, cans and bottles, increasing selling opportunities.
| Coffee beans | 3.8 kg to 4.5 kg |
| Double coffee bean canister | 2.5 kg each (x2) |
| Instant coffee | 1.4 kg * |
| Barley | 1.4 kg |
| Powder milk | 2.2 kg |
| Whitener | 4.0 kg |
| Chocolate | 4.8 kg |
| Lemon tea | 5.2 kg |
| Tea | 2.4 kg |
| Soup | 3.8 kg |
| Instant cold beverage | 4.0 kg |
| Sugar | 5.2 kg |
| Spoons | 540 pcs. |
| Cups | 700 pcs. |
* In the double coffee bean canister versions additional decaffeinated canister with 0.34 kg capacity.
- ▸ Cup sensor.
- ▸ Kit chip clock (for energy saving mod and promotional activities).
- ▸ RS232 module.
- ▸ Visual Smart Programmer Speed that allows the upload of the firmware and settings and the download of the settings and audit without a PC.
- ▸ Cooling unit for cold instant beverages (power consumption 200 W).
- ▸ Cup stations lighting kit through by software.
- ▸ Backlighted lexan with led to reduce energy consumption and with a lifetime greater than neon.
- ▸ Compatible with paper cups and wooden spoons.
- ▸ OPTION: cup sensor to reduce the consumption of plastic cups and to deliver a beverage in a mug.
- ▸ OPTION: energy saving mode to reduce the energy cunsumption when the machine is in stand by.
- ▸ In compliance with ROHS and WEEE.
- Selection panel: Easy
- Cups capacity 70: 700
- Boilers: Single boiler
- Grinders: Single Grinders
- Coffee bean hopper: Single hopper
- Sugar Canister: Yes
- Instant product canister: 5
- Lexan front panel with LED backlight: Top and Bottom
- Anti-Vandal coin introduction IAV: Standard
- Automatic grinding regulation kit: Standard
- Motorized and automatic cup station door: Standard
- Coin box cover with lock: Standard
- Base Cover: Standard
- Height: 1830mm
- Width: 666mm
- Depth: 780mm
- Weight: 167kg
