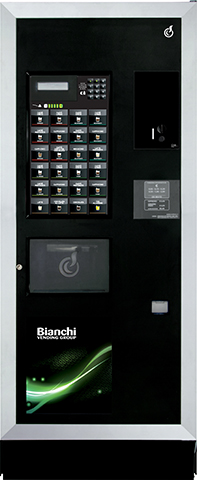

LEI 500 MC - DM Touch

Style: Free Standing


Model: LEI500PES04BVG


Version: E5S - MC - DM Espresso Single boiler Double hopper


LEI 500 M, THE NEW DESIGN CONCEPT THAT OFFERS MODULARITY, FLEXIBILITY AND COMMUNICABILITY.LEI 500 M,

automatic 500 cups vending machine for hot and cold drinks with up to 38 programmable selections and direct selection panel with 24 buttons (in standard and tactile STT panel version). Designed for easily change the selection panel and for being suitable for different locations.


  • ▸ Attractive and modern design with aluminium profiles and backlighted lower lexan.
  • ▸ 3 easy to use and intuitive user interfaces to be chosen between:
  • ▸ * B.easy: direct selection panel with 24 large push buttons
  • ▸ * B.smart: TACTILE SELECTION PANEL STT (Soft Touch Technology), with 24 large and backlighted push buttons
  • ▸ * B.touch: Optional kit LCD multimedia 21,5’’ full Touch&Go that allows to spread videos and communicate nutritional information regarding products (in place of STT panel).
  • ▸ 2 push buttons for sugar dosage.
  • ▸ End selection acoustic signal.
  • ▸ 32 digit alphanumeric display or in option 7’’ LCD which allows to spread images and products information.
  • ▸ light path to guide the user during the purchase process: coin introduction, cup station and change giver.
  • ▸ Wide cup station (high 155mm).
  • ▸ in compliance with standard of access for disabled people.
  • ▸ Family look with the range Snack & Food Vista.
  • ▸ Natural anodized aluminium door profiles.
  • ▸ Modularity. 1 machine = 3 selection panels to be choosen between: standard version with mechanical keyboard, backlighted tactile STT panel or LCD 21,5’’ Full Touch&Go.
  • ▸ Sugar canister, stirrers dispenser, cup dispenser and cup station are positioned on an articulated arm into the machine to lighten the door and to make maintenance operations easier.
  • ▸ Slow falling product dispensing door and locked in stand by and delivery mode.
  • ▸ Cup sensor.
  • ▸ Standard tea serpentine on all versions.
  • ▸ Cup dispenser adjustable to various diameters (from 70 to 74 mm) and dispenser for 90 to 105 mm stirrers.
  • ▸ Door lock with programmable code.
  • ▸ Switching power supply that guarantees total stability of the instant product dose and complete electric safety protections.
  • ▸ Standard multi-protocol electronics.
  • ▸ Compatible with telemetry.
  • ▸ Boiler assembly extractable to make maintenance operations easier.
  • ▸ New ventilator system easily exctractable and covered mixing bowls.
  • ▸ Cup station easily removable without the use of tools.
  • ▸ Instant canisters designed with an handle for front removal and an inclined lid for easy loading.
  • ▸ Compatible with standar change giver. Removable panel for cashless system and banknotes readers installation.
  • ▸ Compatible with all payment system available on the market.
  • ▸ Can work in master/slave with only one set of payment system on the hot vending machine together with a refrigerated automatic spiral vending machine for the sale of snacks, cans and bottles.
Coffee beans 3.8 kg
Double coffee bean canister 2.5 kg each (x2)
Instant coffee 1.2 kg
Barley 1.25 kg
Powder milk 1.70 kg
Creamer 3.20 kg
Chocolate 3.60 kg
Lemon tea 3.30 kg
Tea 1.70 kg
Soup 3.60 kg
Instant cold beverage 4.00 kg
Sugar 5.50 kg
Spoons 400 pcs.
Cups 500 pcs.
  • ▸ Anti-vandal coin introduction kit.
  • ▸ Clock chip kit (for energy saving mode and promotional activities).
  • ▸ 7’’ LCD kit that allows to spread images and video.
  • ▸ 21,5’’ multimedia and interactive LCD kit Full Touch&Go.
  • ▸ On the door can be placed a hook kit for loading canisters.
  • ▸ Cooling unit for cold instant beverages.
  • ▸ System for the automatic regulation of the coffee bean grinding that guarantees with the variations of the humidity and the temperature, the best quality of the product dispensed at all times.
  • ▸ Extractable mixer kit.
  • ▸ Visual Smart Programmer Speed that allows the upload of the firmware and settings and the download of the settings and audit without a PC.
  • ▸ RS232 module.
  • ▸ Backligthed lexan with led to reduce energy consumption and with a lifetime greater than neon.
  • ▸ Compatible with paper cups and wooden spoons.
  • ▸ Cup sensor kit that allows to dispensing a beverage in a mug.
  • ▸ Energy saving mod that allows to put boiler in stand by to reduce the energy consumption.
  • ▸ In compliance with ROHS e WEEE.
  • Selection panel: Touch
  • Cups capacity 70: 500
  • Boilers: Single boiler
  • Grinders: Double Grinders
  • Coffee bean hopper: Double hopper
  • Sugar Canister: Yes
  • Instant product canister: 5
  • Lexan front panel with LED backlight: Bottom
  • Automatic grinding regulation kit:
  • Cup sensor: Standard
  • Cup station light: Standard
  • Base Cover: Standard
  • Height: 1630mm
  • Width: 666mm
  • Depth: 776mm
  • Weight: 160kg
